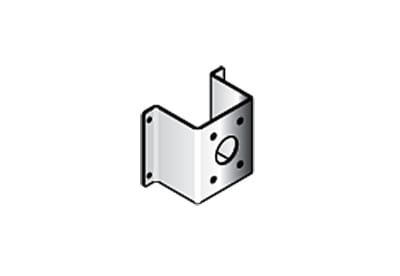

Used to mount most 5" x 12" Plate Heat Exchangers (30 plates or less) with mounting studs to a wall or similar surface.
|
Replacement mounting bracket for 155K, 300K & 360K swimming pool heat exchanger (part numbers 5600006, 5600007, 5600008, 5600012, 5600013 & 5600014).
|
Replacement mounting bracket for 600K swimming pool heat exchanger (part numbers 5600009 & 5600015).
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Replacement mounting bracket for 1200K swimming pool heat exchanger (part number 5600010).
|
Y-Strainer with .20 mesh and FIP fittings. Recommended when installing plate-style heat exchangers. Use 1/2" Brass Pipe Plug (p/n 6557) for cleanout port.
|

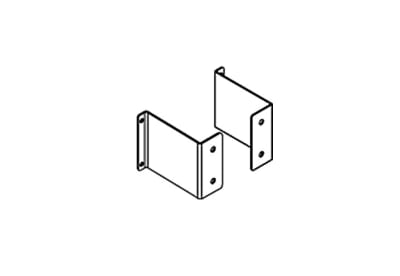

Used to mount most 5" x 12" Plate Heat Exchangers (40 or more) with mounting studs to a wall or similar surface. Includes two mounting brackets.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

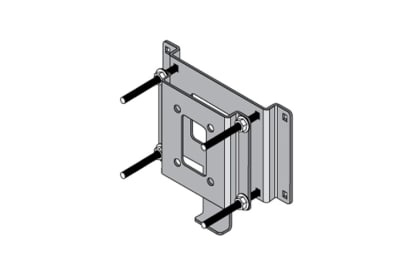

Universal mounting kit for 5" x 12" Plate Heat Exchangers.
|
Y-Strainer with .20 mesh and FIP fittings. Recommended when installing plate-style heat exchangers. Use 3/4" Brass Pipe Plug (p/n 574) for cleanout port.
|
Y-Strainer with .20 mesh and FIP fittings. Recommended when installing plate-style heat exchangers.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Fill valve and inline strainer kit with Sharkbite® 1" MPT fittings.
|

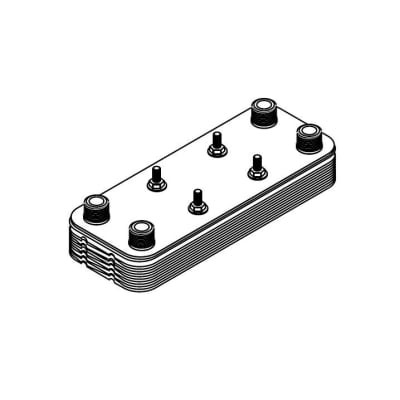

The Plate Heat Exchanger is a compact, high-performance, water-to-water, continuous flow heat exchanger with MPT ports. Units are 316L stainless, copper-brazed. Typically used with water heaters. Dimensions: 5"x12" x 6 plates with 3/4" Ports.
This item is often purchased with plate heat exchanger mounting bracket, part number 5807-011.
Previously known as part number 5734.
|

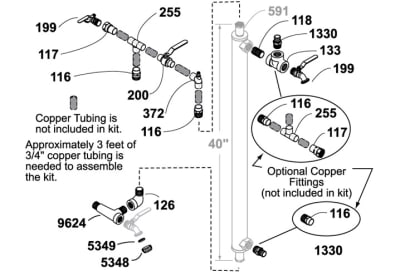

Threaded and sweat fittings kit used to install the Water-to-Water Heat Exchanger (p/n 5600018 or 5600017) on existing domestic water heater for thermal circulating heat transfer. Approximately 3 feet of 3/4" copper tubing is needed to assemble the kit. Water-to-water heat exchanger is sold separately.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

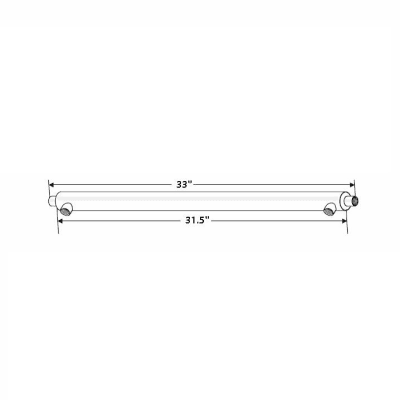

The 33" Water-to-Water Heat Exchanger is a stainless steel water-to-water, domestic water heat exchanger with 3/4" FIP end and side ports. Install on existing water heater for thermal circulating heat transfer. Fittings Kit (p/n 2053) or Push-fit Fittings Kit (9263) are available separately for easy installation.
(The 5600018 Heat Exchanger replaces part number 591)
|
Domestic Hot Water Plate Exchanger kit used to install plate exchanger (with 1" ports) on existing domestic water heater for thermal circulating heat transfer. Water-to-water plate heat exchanger is sold separately.
Each kit includes:2 - Street Elbow, 90˚ Brass, 1"
2 - Sharkbite Female Adapter, 1" FPT
2 - Sharkbite Elbow, 90˚, 3/4"
2 - Sharkbite Reduce Adapter, 3/4" x 1" FNPT
|
The Plate Heat Exchanger is a compact, high-performance, water-to-water, continuous flow heat exchanger with MPT ports. Units are 316L stainless, copper-brazed. Typically used with water heaters. Dimensions: 5"x12" x 6 plates with 3/4" Ports. For p/n 0020-051, no mounting studs are included but Mounting Bracket (p/n 1097) can be used.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Push-fit fittings kit used to install the Water-to-Water Heat Exchanger (p/n 5600018 or 5600017) on existing domestic water heater for thermal circulating heat transfer. Water-to-water heat exchanger is sold separately.
|

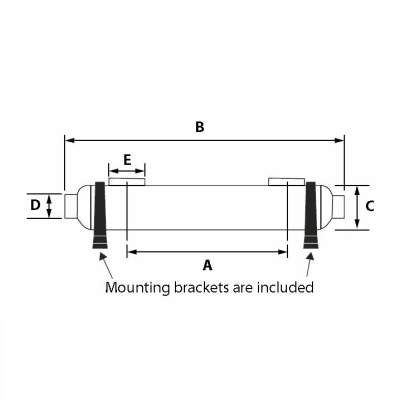

Constructed of 316L stainless steel, this shell & tube heat exchanger is a very reliable and effective way to transfer heat indirectly between the outdoor furnace and pool or spa circuit. Unit is designed for either horizontal or vertical mounting (mounting brackets are included). The unit should always be mounted to a wall, ceiling or floor to prevent vibrations or water hammer which could damage the unit. Used in same applications that MPN plate exchangers are used. Not recommended for use with salt chlorinated pools or hot tubs.
|

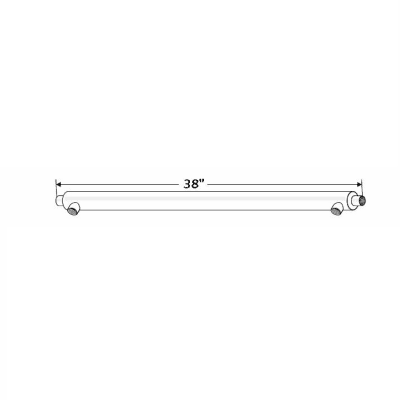

The water-to-water double wall heat exchanger is a stainless steel water-to-water, domestic water heat exchanger with 3/4" FIP end ports and 3/4" FIP side ports. Features a spiral turbulation design. Install on existing water heater for thermal circulating heat transfer. Fittings Kit (p/n 2053) or Push-fit Fittings Kit (9263) are available separately for easy installation.
Note: The 5600017 Heat Exchanger replaces part number 318.
Note: Call for information on ordering the double wall water-to-water heat exchanger.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Constructed of 316L stainless steel, this shell & tube heat exchanger is a very reliable and effective way to transfer heat indirectly between the outdoor furnace and pool or spa circuit. Unit is designed for either horizontal or vertical mounting (mounting brackets are included). The unit should always be mounted to a wall, ceiling or floor to prevent vibrations or water hammer which could damage the unit. Used in same applications that MPN plate exchangers are used. Not recommended for use with salt chlorinated pools or hot tubs.
|

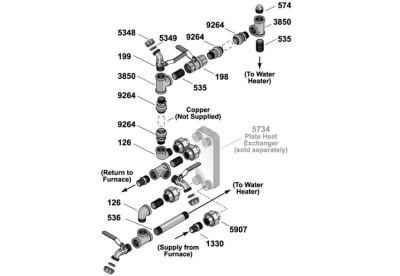

Fittings kit for domestic water heaters using Plate Heat Exchanger (p/n 5734). Can be used for on demand water heaters as well. Plate Heat Exchanger sold separately.
|
The Plate Heat Exchanger is a compact, high-performance, water-to-water, continuous flow heat exchanger with MPT ports. Units are 316L stainless, copper-brazed. Application: boilers up to 100k Btu. 5"x12" x 30 plates, 1" port.
Note regarding shipping: This is an
oversized product cannot be shipped via USPS Priority Mail. Please choose UPS
Ground shipping method upon checkout.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Constructed of 316L stainless steel, this shell & tube heat exchanger is a very reliable and effective way to transfer heat indirectly between the outdoor furnace and pool or spa circuit. Unit is designed for either horizontal or vertical mounting (mounting brackets are included). The unit should always be mounted to a wall, ceiling or floor to prevent vibrations or water hammer which could damage the unit. Used in same applications that MPN plate exchangers are used. Not recommended for use with salt chlorinated pools or hot tubs.
|

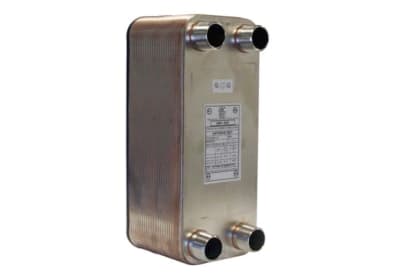

The Plate Heat Exchanger is a compact, high-performance, water-to-water, continuous flow heat exchanger with MPT ports. Units are 316L stainless, copper-brazed. Typically used with boilers between 100K and 175K Btu. Dimensions: 5"x12" x 50 plates with 1-1/4" Ports.
|
Constructed of 316L stainless steel, this shell & tube heat exchanger is a very reliable and effective way to transfer heat indirectly between the outdoor furnace and pool or spa circuit. Unit is designed for either horizontal or vertical mounting (mounting brackets are included). The unit should always be mounted to a wall, ceiling or floor to prevent vibrations or water hammer which could damage the unit. Used in same applications that MPN plate exchangers are used. Not recommended for use with salt chlorinated pools or hot tubs.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

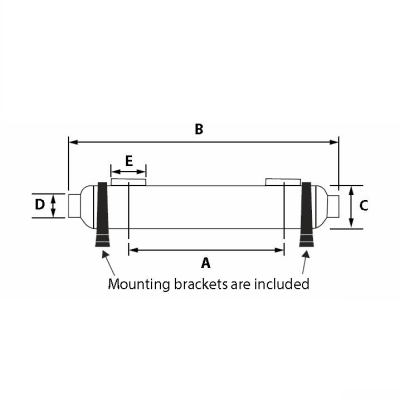

Constructed of titanium shell, this swimming pool heat exchanger is a very reliable and effective way to transfer heat indirectly between the outdoor furnace and pool or spa circuit. Unit is designed for either horizontal or vertical mounting (mounting brackets are included). The unit should always be mounted to a wall, ceiling or floor to prevent vibrations or water hammer which could damage the unit. Used for any pool or hot tub application with salt or chlorine treatments.
|

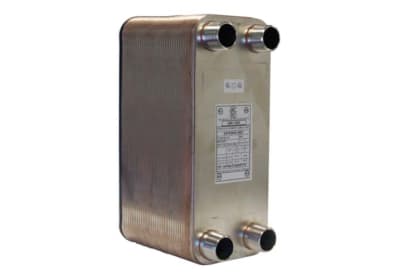

The Plate Heat Exchanger is a compact, high-performance, water-to-water, continuous flow heat exchanger with MPT ports. Units are 316L stainless, copper-brazed. Typically used with heat loads between 175K and 250K Btu. Dimensions: 5"x12" x 70 plates, with 1-1/4" Ports.
|
Constructed of titanium shell, this swimming pool heat exchanger is a very reliable and effective way to transfer heat indirectly between the outdoor furnace and pool or spa circuit. Unit is designed for either horizontal or vertical mounting (mounting brackets are included). The unit should always be mounted to a wall, ceiling or floor to prevent vibrations or water hammer which could damage the unit. Used for any pool or hot tub application with salt or chlorine
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Constructed of 316L stainless steel, this shell & tube heat exchanger is a very reliable and effective way to transfer heat indirectly between the outdoor furnace and pool or spa circuit. Unit is designed for either horizontal or vertical mounting (mounting brackets are included). The unit should always be mounted to a wall, ceiling or floor to prevent vibrations or water hammer which could damage the unit. Used in same applications that MPN plate exchangers are used. Not recommended for use with salt chlorinated pools or hot tubs
|
Constructed of 316L stainless steel, this shell & tube heat exchanger is a very reliable and effective way to transfer heat indirectly between the outdoor furnace and pool or spa circuit. Unit is designed for either horizontal or vertical mounting (mounting brackets are included). The unit should always be mounted to a wall, ceiling or floor to prevent vibrations or water hammer which could damage the unit. Used in same applications that MPN plate exchangers are used. Not recommended for use with salt chlorinated pools or hot tubs.
|
Constructed of titanium shell, this swimming pool heat exchanger is a very reliable and effective way to transfer heat indirectly between the outdoor furnace and pool or spa circuit. Unit is designed for either horizontal or vertical mounting (mounting brackets are included). The unit should always be mounted to a wall, ceiling or floor to prevent vibrations or water hammer which could damage the unit. Used for any pool or hot tub application with salt or chlorine treatments.
|
|
|
